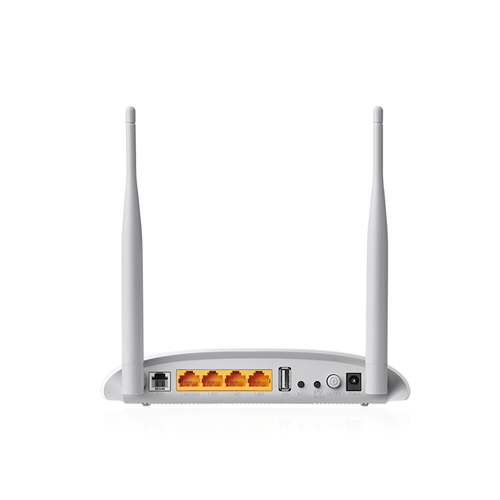

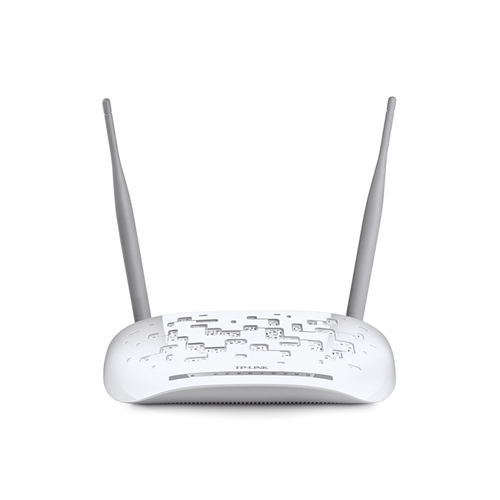

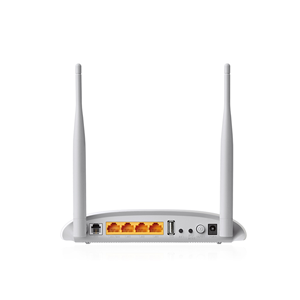

MODEM ROUTER ADSL2+ WIRELESS N 300MBPS 4ETHERNET 1USB 1*WAN TP-LINK TD-W9970

Services

CARATTERISTICHE HARDWARE
Interfaccia	4 10/100Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port
Tasto	1 Power On/Off Button 1 WPS/RESET Button 1 Wi-Fi On/Off Switch
Alimentatore esterno	12VDC/1A
Standard IEEE	IEEE 802.3, 802.3u
Standard VDSL2	ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
Standard ADSL	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1
Standard ADSL2	ITU-T G.992.3 (G.dmt.bis)
Standard ADSL2+	ITU-T G.992.5
Dimensioni ( L x P x A )	7.75.11.4 in. (195×130×36mm)
Tipo di antenna	Omni directional, Fixed
Guadagno antenna	2 x 5dBi

CARATTERISTICHE WIRELESS
Standard wireless	IEEE 802.11b, 802.11g, 802.11n
Frequenza	2.400-2.4835GHz
Potenza di trasmissione	<20dBm(EIRP)
Sicurezza wireless	Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering

CARATTERISTICHE SOFTWARE
QoS (Quality of Service)	WMM, Bandwidth Control (IP QoS)
Sicurezza	NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
IPv6	IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Gestione	Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Port forwarding	Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN pass-through	PPTP, L2TP, IPSec Pass-through
Protocolli ATM/PPP	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
Caratteristiche avanzate	Ethernet WAN (EWAN) Guest Network, Wireless Schedule Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP
Condivisione USB	File Server (SMB) FTP Server Media Server Print Server
IGMP	IGMP snooping V1/V2/V3 IGMP Multicast
VPN IPsec	10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)

ALTRO
Certificazione	CE, RoHS

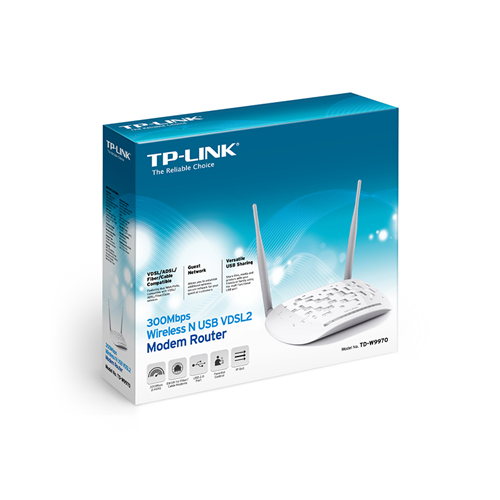

Contenuto della confezione	TD-W9970 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter
Requisiti di sistema	Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Ambiente	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
