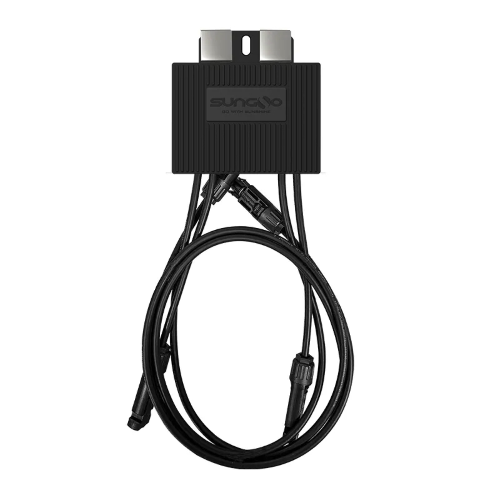

OTTIMIZZATORE DI POTENZA PER MODULI FOTOVOLTAICI SUNGO OPT PRO 800W
| Model | SUNGO OPT PRO |
| DC Input | |
| Max input power | 800W |
| Max voltage | 70V |
| MPPT voltage range | 7-60V |
| Max continuous input current | 21A |
| Max input short-circuit current | 23A |
| Night self-consumption | 0W |
| DC Output | |
| Rated output voltage | 58V |
| Max continuous output current | 21A |
| Max output power | 780W |
| Max system voltage | 1500V |
| Efficiency | |
| Peak efficiency | 99.7% |
| Power loss @5A | 0.9W |
| Power loss @8A | 1.4W |
| Power loss @12A | 29W |
| Power loss@15A | 4.5W |
| Power loss@20A | 7.2W |
| General Data | |
| Dimensions(W*D*H) | 103*21.3*105.3mm |
| Weight | 0.65Kg |
| Input/output cable length | IN+200/IN-1100/ OUT+ 750/IN-750mm |
| Input/output cable size | 4m?(12AWG) / 4m?(12AWG) |
| Terminals | MC4(compatible) |
| Protection rating | IP67/NEMA6 |
| Relative humidity | 0-100XRH |
| Operating temperature range | -40-+60? |
| Cooling | Natural cooling |
| Overvoltage category | OVC II |
| Maximum altitude | s4000m |
| Certification | CE |
| EMC |
EN IEC 61000-6-1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-3:2021E NIEC 61000-6-4:2019 |
| Packaging | 20pcs/CTN 900pcs/pallets |
