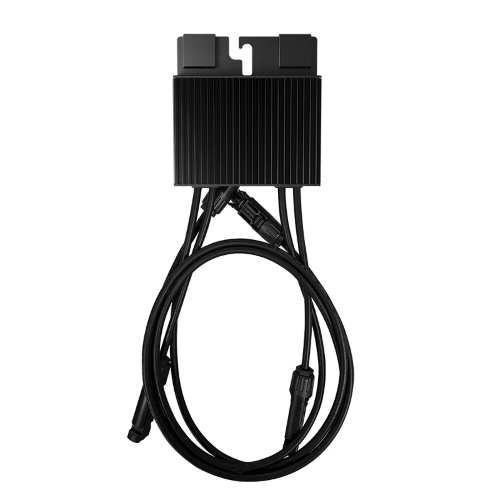

OTTIMIZZATORE DI POTENZA PER MODULI FOTOVOLTAICI SUNGO iOPT 800W
| Model | SUNGO iOPT 800W | |
| DC Input | ||
| Max input power | 800W | |
| Max voltage | 70V | |
| MPPT voltage range | 12~60V | |
| Max continuous input current | 21A | |
| Max input short-circuits current | 23A | |
| Night self-consumption | 0W | |
| DC Output | ||
| Output voltage | 0~60V | |
| Max continuous output current | 21A | |
| Max output power | 780W | |
| Max system voltage | 1500V | |
| DC Output During Shutdown | ||
| Output voltage (without SUNGO GT) | 1±0.1V | |
| Efficiency | ||
| Peak MPPT efficiency | =99.7% | |
| Communication | ||
| Communication Method | PLC | |
| Communication parameter | PV Voltage, Output Voltage, Output Current, Output Power, Temperature,State | |
| Advanced Protection | ||
| Input overvoltage protection | >75V | |
| Output overcurrent protection | >22A | |
| Output overload protection | >800W | |
| High temperature protection | >110? | |
| General Data | ||
| Dimensions (W*D*H) | 116*31.5*123mm | |
| Weight | 0.865kg | |
| Input/output cable length | IN+200/IN-1100/OUT+750/IN-750mm | |
| Input/output cable size | 4m?(12AWG) /4m?(12AWG) | |
| Terminals | MC4(Compatible) | |
| Protection rating | IP68 | |
| Relative humidity | 0~100%RH | |
| Operating temperature range | -40~+65? | |
| Cooling | Natural cooling | |
| Certification | CE | |
| Packaging | 28pcs/CTN840pcs/pallets | |
