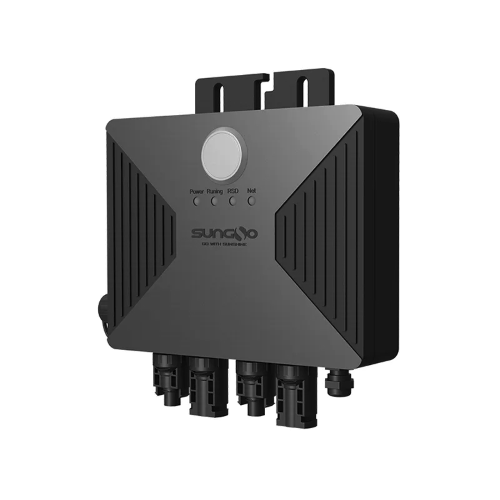

DATA GATEWAY E MODULO DI SPEGNIMENTO RAPIDO SUNGO GT
| Model | SUNGO GT |
| Match with | SUNGO iOPT 800W |
| AC Input Parameters | |
| AC input voltage range | 90~264V |
| AC Input frequency | 50/60Hz |
| Maximum AC input power | 5W |
| Maximum AC input current | 0.1A@90Vac |
| PV Input Parameters | |
| Terminals | MC4 (Compatible) |
| Maximum system voltage | 1500V |
| Nos of input strings | 2 |
| Max current of each string | 21A |
| Max Module Nos per string | 30 |
| Communication Method | |
| Communication with optimizer | PLC |
| Communication with upper machine | 2.4GHz Wi-Fi/RS485 |
| Rapid Shutdown | |
| Shut-down | 1. Press the button once until the RSD indicator lights up2.Controller AC power off, all indicator lights off |
| Standards | |
| EMC | IEC61000-6-1; IEC61000-6-2; IEC61000-6-3 |
| Safety | IEC62109-1 |
| RoHs | Yes |
| Installation Specification | |
| Dimension (W*D*H) | 140*33.5*175mm |
| Weight | 0.88kg |
| AC input cable length | 1m |
| Protection level | IP67 |
| Working temperature range | -40~+70? |
| Form of installation | Wall hanging/holding, screw locking |
| Certification | CE |
| Packaging | 5pcs/CTN 40pcs/pallets |
